d371x wafer soft seal butterfly valve uses and characteristics
d371x wafer soft seal butterfly valve produced and sold by woci valve group for temperature ≤120 ℃, nominal pressure ≤16mpa food, pharmaceutical, chemical, oil, electricity, alloy, construction, textile, paper and other drainage, gas pipe for regulate flow and shut off media.
d371x wafer soft seal butterfly valve main features
1, the design is novel, reasonable, unique structure, light weight, quick opening and closing.
2, torque is small, easy to operate, labor-saving smart.
3, can be installed in any location, easy maintenance.
4, seals can be replaced, sealing performance and reliable two-way seal to achieve zero leakage.
5, sealing material aging resistance, corrosion resistance, long life and other characteristics.

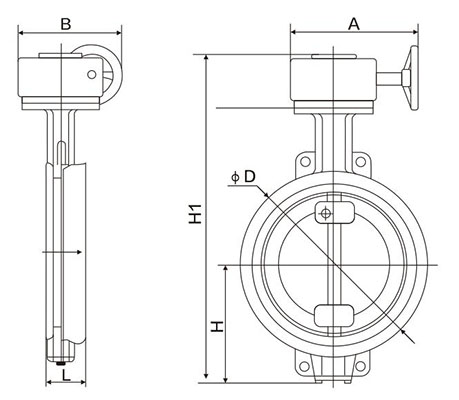

d371x wafer soft seal butterfly valve main dimensions and weight (pn1.0 / 1.6mpa)
| dn (mm) | a | b | c | d1 | l | n-φ | k | e | 4-φ1 | φ2 | g | weight wt (kg) |
| 50 | 140 | 80 | 43 | 125 | 32 | 4-19 | 77 | 57.15 | 4-6.7 | 12.6 | 100 | 3.34 |
| 65 | 152 | 89 | 46 | 145 | 32 | 4-19 | 77 | 57.15 | 4-.67 | 12.6 | 120 | 3.94 |
| 80 | 159 | 95 | 45.21 | 160 | 32 | 8-19 | 77 | 57.15 | 4-.67 | 12.6 | 127 | 4.05 |
| 100 | 178 | 114 | 52.07 | 180 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 15.77 | 156 | 5.48 |
| 125 | 190 | 127 | 55.5 | 210 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 18.92 | 190 | 7.66 |
| 150 | 203 | 139 | 55.75 | 240 | 32 | 8-23 | 92 | 69.85 | 4-10.3 | 18.92 | 212 | 8.5 |
| 200 | 238 | 175 | 60.58 | 295 | 45 | 8-23 | 115 | 88.9 | 4-14.3 | 22.1 | 268 | 25 |
| 250 | 268 | 203 | 68 | 350 | 45 | 12-23 | 115 | 88.9 | 4-14.3 | 28.45 | 325 | 31.4 |
| 300 | 306 | 242 | 76.9 | 400 | 45 | 12-23 | 140 | 107.95 | 4-14.3 | 31.6 | 403 | 45.9 |
| 350 | 368 | 267 | 76.17 | 460 | 45 | 16-23 | 140 | 107.95 | 4-14.3 | 31.6 | 436 | 54 |
